Optimo Electronic Extreme Duty Icon
Extreme Duty

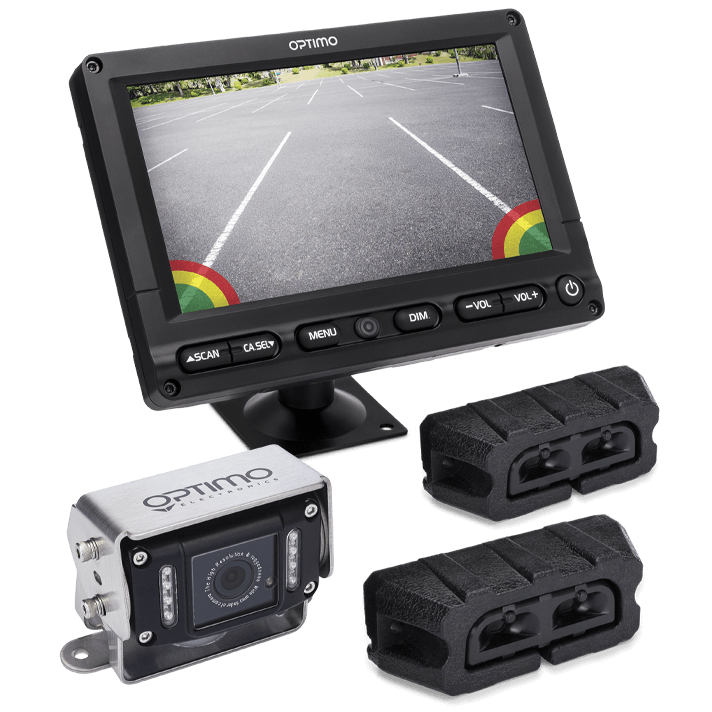

Ultrasonic Reverse Sonar Sensor + Blind Spot Camera System

SYS-7311ED-SONAR(1)
5/5
5 Year(s) Warranty
Monitor
7 inch screen icon
20G Vibration Rating Icon
IP65 Icon
Speaker Icon
Camera
Heating Icon
30G Vibration Icon
Microphone Icon
IP69 Icon
Night Vision Icon
Features

ULTRASONIC REVERSE SONAR SENSOR + EXTREME DUTY CAMERA SYSTEM (3 Channel)
Audio + Visual Warnings alert operator when object is in detection zone
10ft. Detection Range warning with increased volume/frequency as object nears
7” LED Color Monitor IP65 Waterproof & 20G Vibration Resistant
Sony IR Night Vision Heated Camera IP69 Waterproof & 30G Vibration Resistant
FULL SCREEN VIEW Monitor w/Auto Trigger Activation (backup, turn signals, etc.)
Reverse Distance Grid monitor controlled and adjustable custom fitting
Military spec camera cables with screw type connection for ease of installation
Free Power Input DC12V ~ 32Volts to protect from damaging power fluctuation

How it works

“ACTIVE” Blind Spot Assistance Systems utilizes Ultrasonic Sonar Sensors to create a 10ft safety zone behind large vehicles giving
the driver an audible alert demonstrating the proximity of a person or object behind them.
Available in a stand alone model that can be added to any vehicle with existing backup camera, or available integrated with our
7” Extreme Duty Camera system offering one of the most advanced safety solutions on the market for large vehicles.

System Components

Sony IP69 Color Heated Camera

30G Vibration Icon
IP69 Icon
Microphone Icon
Heating Icon
Night Vision Icon

Sony CCD / Sony CMOS AHD
IP69 Weatherproof
Rugged 30G Vibration Rating
Ultra-wide 150° viewing angle
Excellent Night view with IR LED
High Sensitivity Microphone
Made in Korea

7″ LED IP65 Waterproof Monitor (3 CH.)

20G Vibration Rating Icon
IP65 Icon

7” LED Color Monitor w/speaker
3 Camera Inputs
Waterproof Housing (IP65)
Rugged Vibration Resistant (20G)
Auto Triggered Camera Activation
Adjustable Reverse Grid Lines
Lit-Up Buttons & Auto Dimmer
Normal/Mirror Image support
Shutter Camera Capable
3 Yr. Factory Warranty
MADE IN KOREA

Ultrasonic Reverse Sonar Sensor

Speaker Icon
View Icon
Ultrasonic Reverse Sonar Sensor
IP69 Weatherproof
12″ lead w/screw connectior
Made in Korea
